PRODUCT / A100

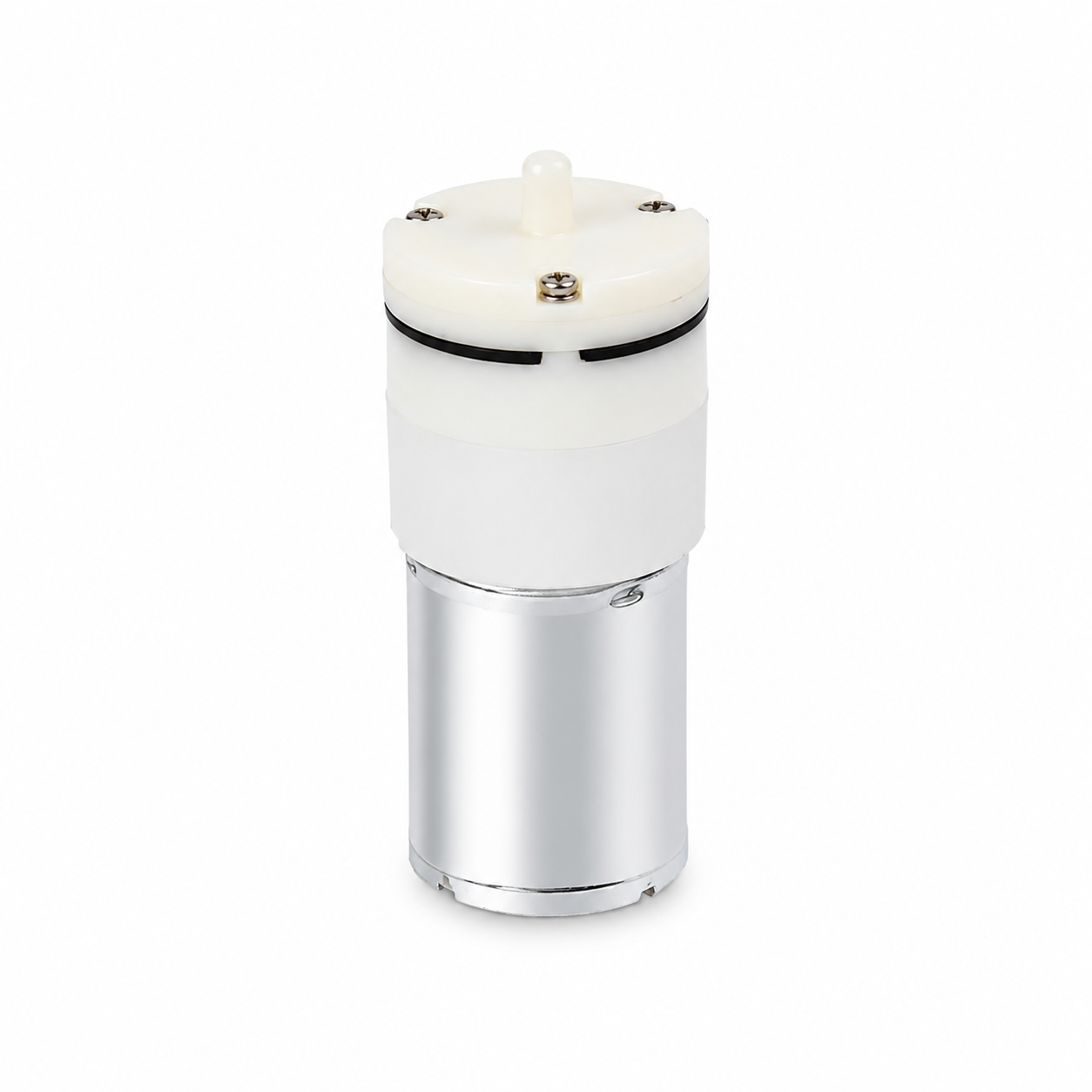

A100 Series Air Pump
A compact A100 air pump series with source-listed DC voltage versions, ≤10S inflation time, 1–3LPM flow and ≥100KPA pressure.
SOURCE-BACKED HIGHLIGHTS
What the source sheet confirms
01
Five source-table configurations are listed from DC3.0V through DC24.0V, including a DC3–24.0V row.
02
The source sheet lists ≤10S inflation time, 1–3LPM or 1.5–2LPM flow, and ≥100KPA pressure.
03
The Chinese application line lists electronic blood pressure monitors, memory pillows, ventilators, inflatable shoes and nebulizers.
PERFORMANCE
Verified model data
Rated voltageDC3.0V / DC6.0V / DC12.0V / DC24.0V / DC3–24.0V
Working current≤600mA / ≤430mA / ≤230mA / ≤200mA
Inflation time≤10S
Flow1–3LPM / 1.5–2LPM
Pressure≥100KPA
Noise≥40dB
Life≥600H / 1000H–1500H
| Model | Rated voltage | Working current | Inflation time | Flow | Pressure | Noise | Life |
|---|---|---|---|---|---|---|---|
| A100 | DC3.0V | ≤600mA | ≤10S | 1–3LPM | ≥100KPA | ≥40dB | ≥600H |
| A100 | DC6.0V | ≤430mA | ≤10S | 1–3LPM | ≥100KPA | ≥40dB | ≥600H |
| A100 | DC12.0V | ≤230mA | ≤10S | 1–3LPM | ≥100KPA | ≥40dB | ≥600H |
| A100 | DC24.0V | ≤200mA | ≤10S | 1–3LPM | ≥100KPA | ≥40dB | ≥600H |
| A100 | DC3–24.0V | ≤600mA | ≤10S | 1.5–2LPM | ≥100KPA | ≥40dB | 1000H–1500H |

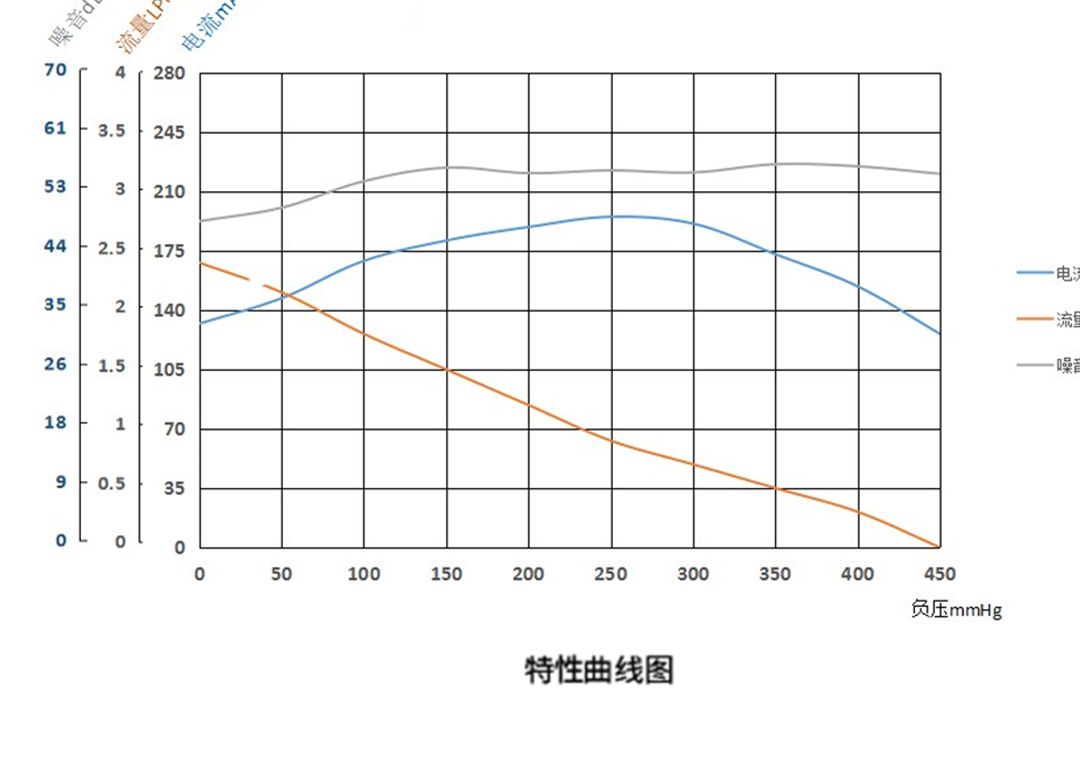

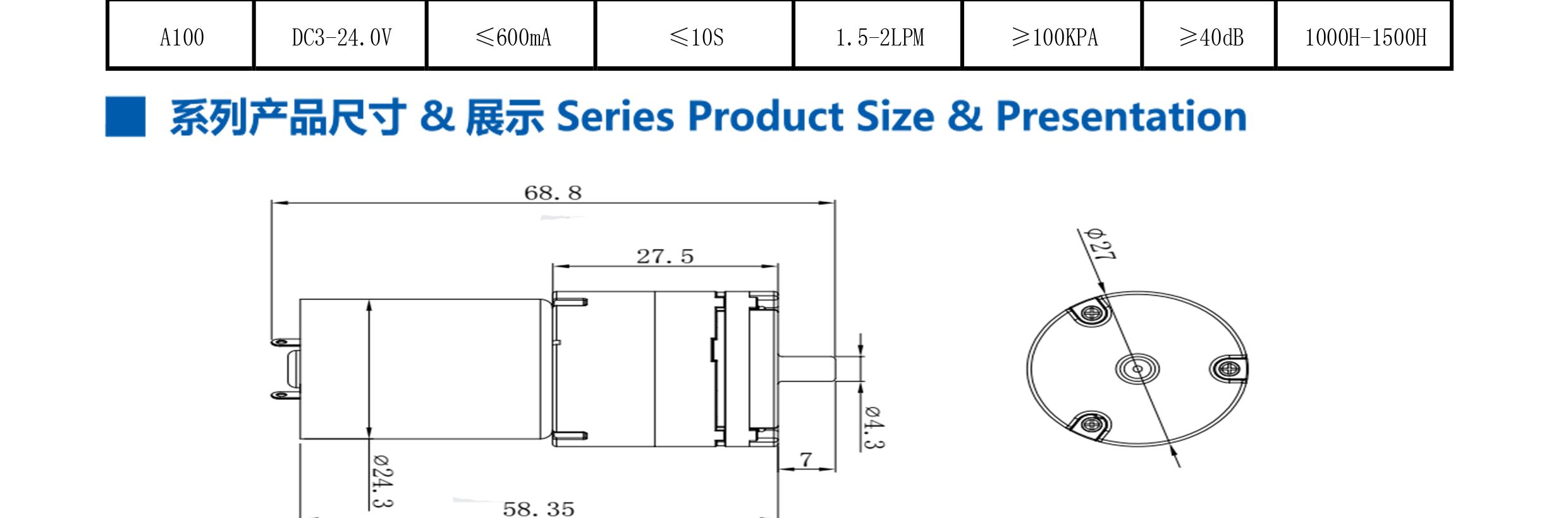

CURVE & DRAWING

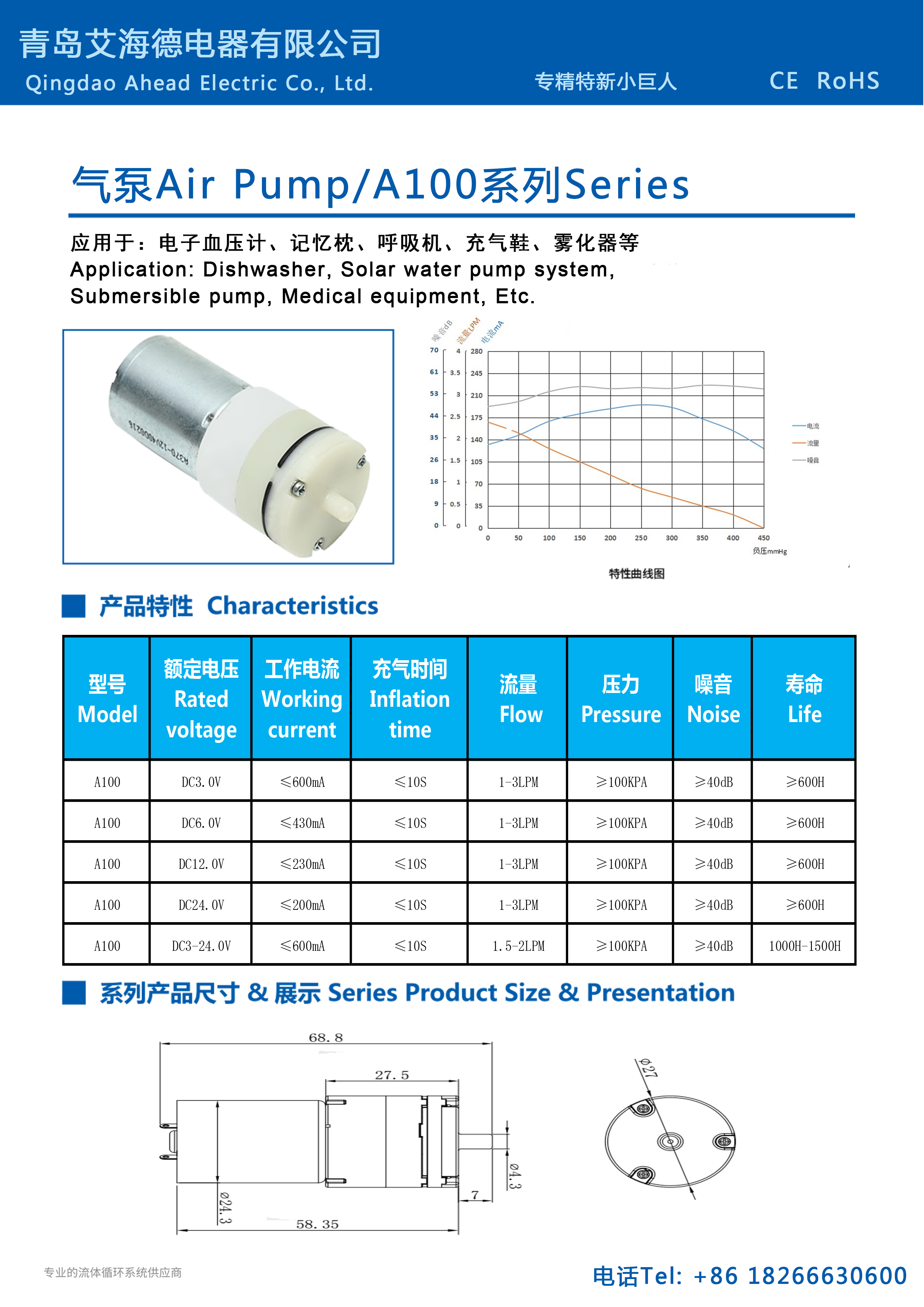

Performance curve and dimensional drawing from the specification sheet.
FAQ
Which voltage versions are shown in the specification?
The specification sheet lists DC3.0V, DC6.0V, DC12.0V, DC24.0V and DC3–24.0V configurations for A100.
Is a CAD file available on this page?
No CAD file was provided in the source materials. This page only links to the real A100 specification sheet.
CUSTOMIZATION
Configure only from confirmed options.
Available
Voltage/configuration selection from the listed DC3.0V, DC6.0V, DC12.0V, DC24.0V and DC3–24.0V rows.
Confirm the final configuration with engineering before sampling or production.
Available
Sample and quotation support based on target inflation time, flow and pressure requirements.
Confirm the final configuration with engineering before sampling or production.
