PRODUCT / AMP50H

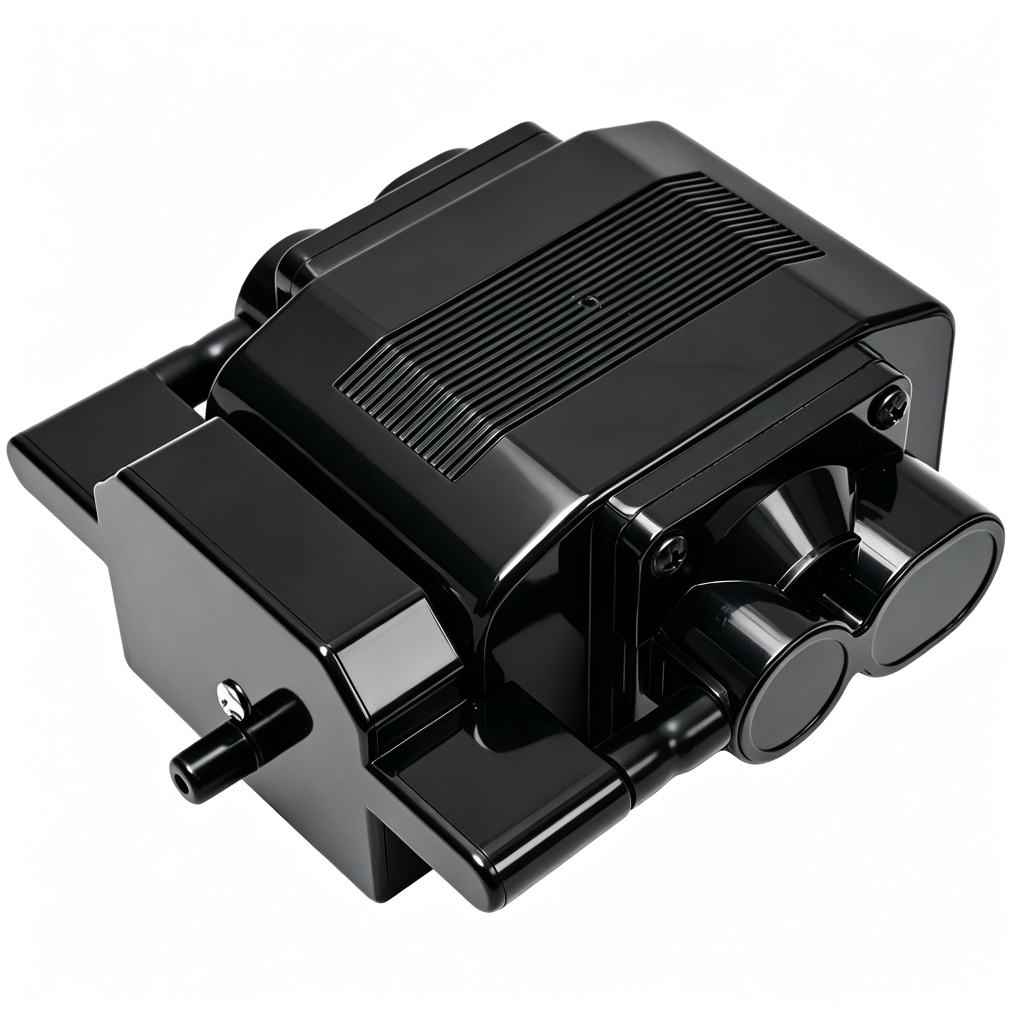

AMP50H Series Electromagnetic Pump
A compact electromagnetic air pump platform specified for medical massage equipment, medical atomizers, diffusers and air-mattress massage chairs.
SOURCE-BACKED HIGHLIGHTS
What the source sheet confirms
01
Three voltage versions are explicitly listed: DC24.0V, AC110V and AC220V.
02
Rated 16W with >20LPM flow and ≥25KPA pressure according to the specification sheet.
03
Specified application coverage includes medical massage equipment, medical atomizers, diffusers and air-mattress massage chairs.
PERFORMANCE
Verified model data
Rated voltageDC24.0V / AC110V / AC220V
Working current≤1700mA / ≤300mA / ≤200mA
Power16W
Flow>20LPM
Pressure≥25KPA
Noise≥40dB
Life≥10000H
| Model | Rated voltage | Working current | Power | Flow | Pressure | Noise | Life |
|---|---|---|---|---|---|---|---|
| AMP50H | DC24.0V | ≤1700mA | 16W | >20LPM | ≥25KPA | ≥40dB | ≥10000H |
| AMP50H | AC110V | ≤300mA | 16W | >20LPM | ≥25KPA | ≥40dB | ≥10000H |
| AMP50H | AC220V | ≤200mA | 16W | >20LPM | ≥25KPA | ≥40dB | ≥10000H |

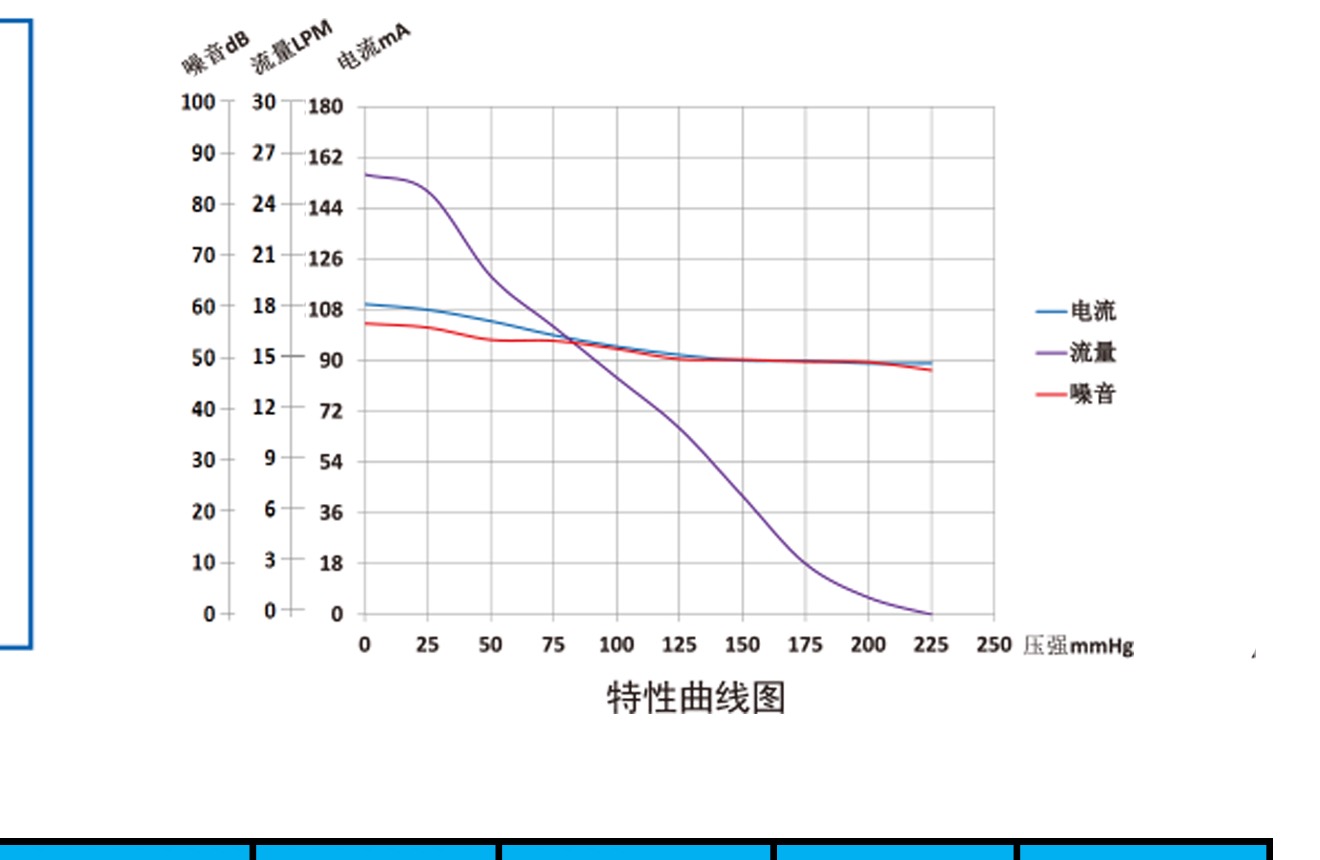

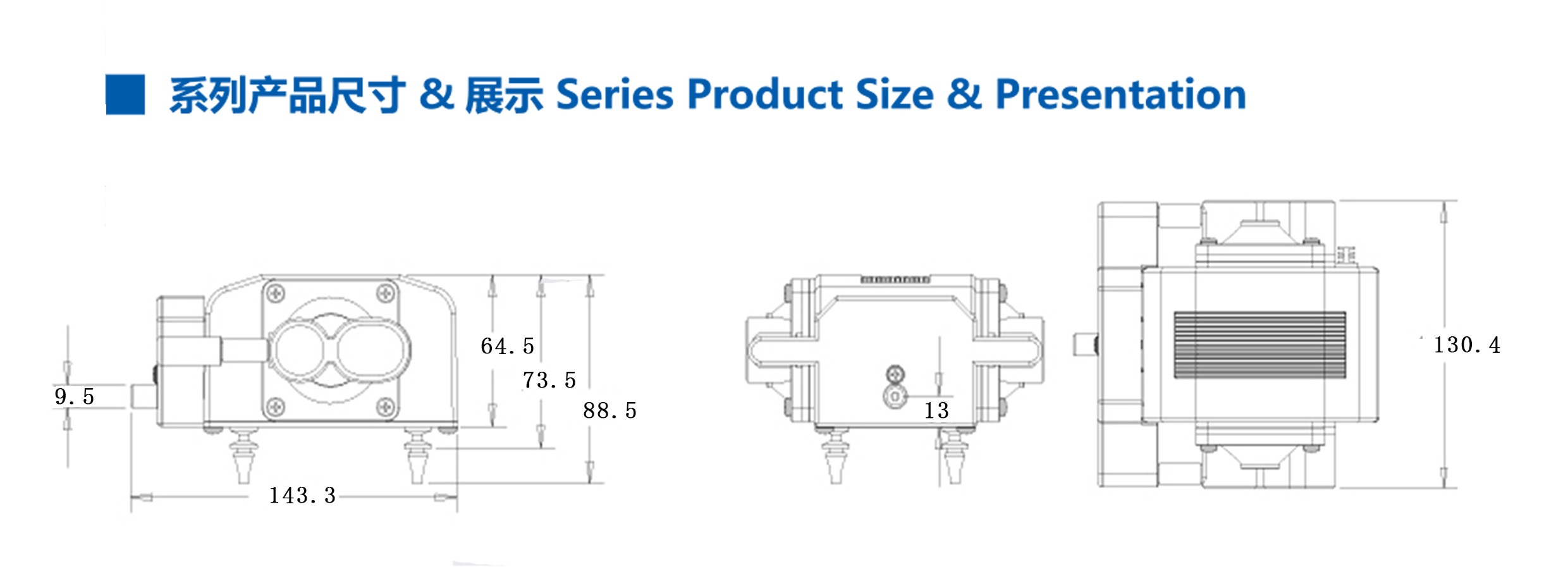

CURVE & DRAWING
Performance curve and dimensional drawing from the specification sheet.
FAQ
Which voltage versions are shown in the specification?
The specification sheet lists DC24.0V, AC110V and AC220V versions for AMP50H.
Is a CAD file available on this page?

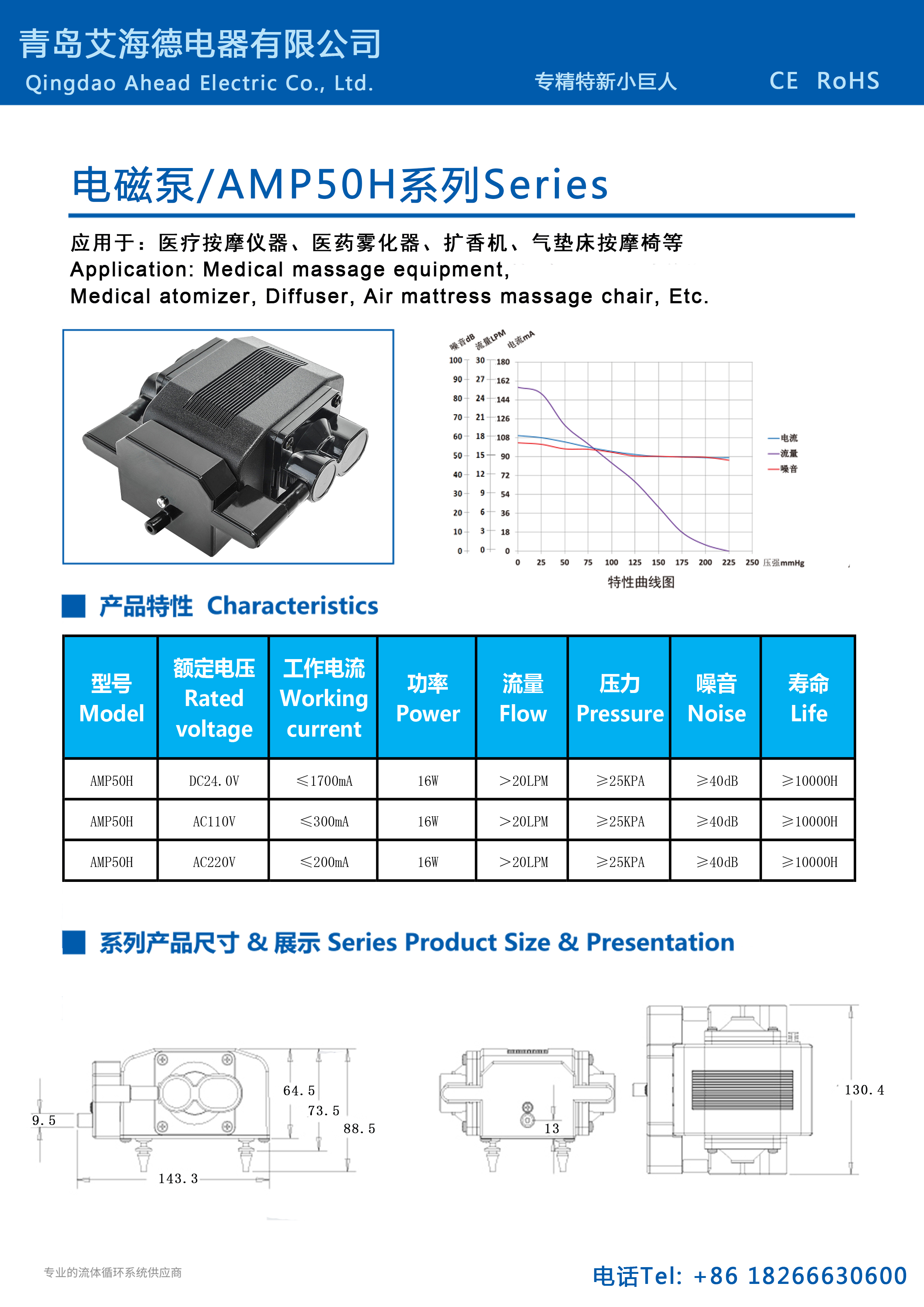

No CAD file was provided in the source materials. This page only links to the real AMP50H specification sheet.
CUSTOMIZATION
Configure only from confirmed options.
Available
Voltage version selection from the listed DC24.0V, AC110V and AC220V options.
Confirm the final configuration with engineering before sampling or production.
Available
Application matching and sample/quote support based on the target equipment.
Confirm the final configuration with engineering before sampling or production.
FILES
Real source files only
RELATED RESOURCES
Application knowledge connected to this model.
Technical article
Air Pump Pressure vs Flow
Read performance curves at the real system resistance, not free flow.
Case studyAMP50H for Medical Massage Equipment Air Supply
A specification-backed application reference for equipment that needs >20LPM flow and ≥25KPA pressure from a compact electromagnetic pump.
