AW500UL Series Water Pump
A compact water pump series specified for showers, solar energy systems, aquarium pumps and medical equipment.
What the source sheet confirms
Four source-table configurations are listed across DC6.0V, DC12.0V and DC24.0V.
Flow ranges from 200–400L/H to 600–800L/H, with lift values from 2.5–3.5M to 4–7M.
Specified application coverage includes showers, solar energy systems, aquarium pumps and medical equipment.
Verified model data
| Model | Voltage | Current | Power | Flow | Lift | Noise | Life |
|---|---|---|---|---|---|---|---|
| AW500UL | DC6.0V | 1100mA | 6W | 200–400L/H | 2.5–3.5M | ≤40dB | >20000H |
| AW500UL | DC12.0V | 600mA | 7W | 200–400L/H | 2.5–3.5M | ≤40dB | >20000H |
| AW500UL | DC12.0V | 1580mA | 19W | 400–800L/H | 4–7M | ≥40dB | >20000H |
| AW500UL | DC24.0V | 920mA | 22W | 600–800L/H | 4–7M | ≥40dB | >20000H |

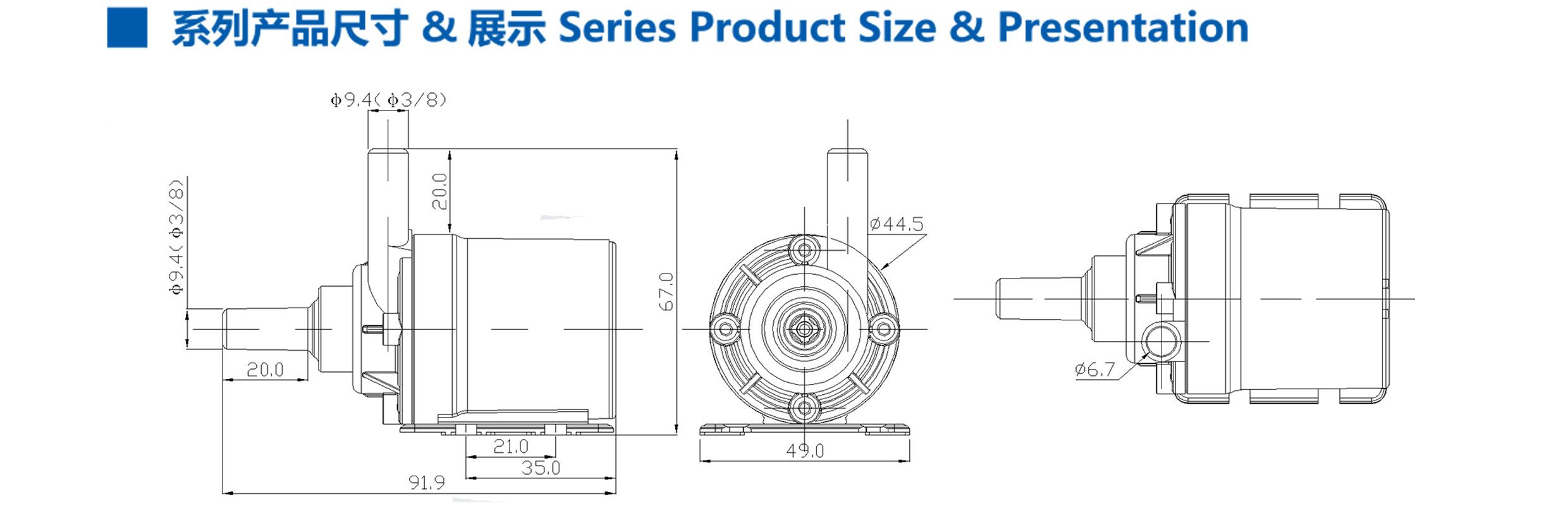

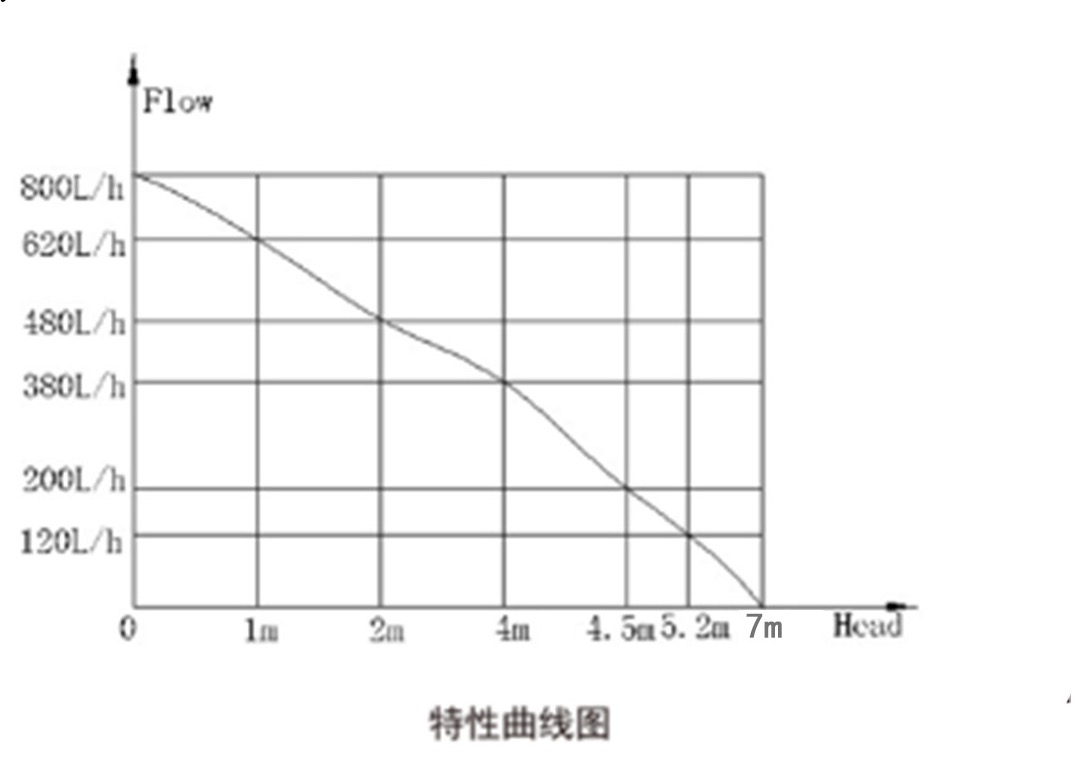

Performance curve and dimensional drawing from the specification sheet.
Where this platform fits
FAQ
Which voltage versions are shown in the specification?

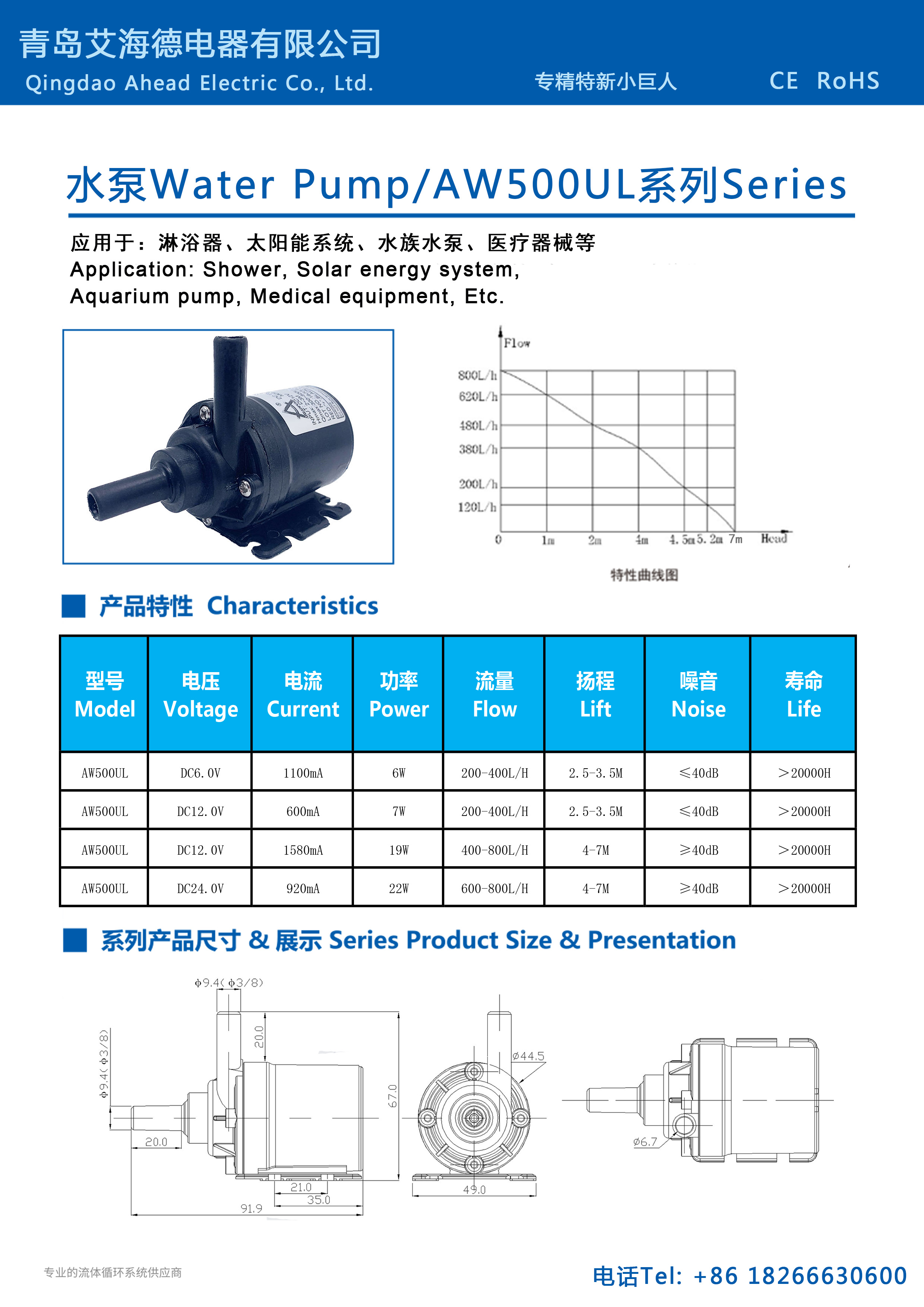

The specification sheet lists DC6.0V, DC12.0V and DC24.0V configurations for AW500UL.
Is a CAD file available on this page?
No CAD file was provided in the source materials. This page only links to the real AW500UL specification sheet.
Configure only from confirmed options.
Voltage and performance version selection from the listed DC6.0V, DC12.0V and DC24.0V rows.
Confirm the final configuration with engineering before sampling or production.
Application matching and sample/quote support based on the target water system.
Confirm the final configuration with engineering before sampling or production.
